What an Overloaded Electrical Panel Means
An overloaded electrical panel occurs when the total electrical demand in your home exceeds the capacity of your service panel to safely distribute power. Your electrical panel is the central hub that receives power from your utility company and distributes it throughout your home via individual circuits. When too many high-draw appliances run simultaneously, or when your home's overall electrical needs have grown beyond what the panel was designed to handle, the system becomes stressed.
This is especially common in older homes-built decades ago when electrical demands were far lower. A house wired in the 1970s might have a100-amp service panel, but modern homes with air conditioning, electric water heaters, and multiple devices draw significantly more power.
Understanding the signs your home electrical panel is overloaded is the first step toward keeping your home safe.
Frequent Circuit Breaker Tripping: Causes and What They Signal
Circuit breakers trip for a reason: they're protecting your home from electrical fires and equipment damage. When a breaker trips repeatedly, it tells you that something is drawing too much current through that circuit.
A single breaker trip isn't necessarily alarming, but frequent tripping when running normal household appliances is a red flag. Many home owners simply reset the breaker and move on, missing the real issue: your panel may not have enough capacity to handle your home's electrical load.
Each circuit has a rated amperage (typically 15 or 20 amps for standard outlets). When current demand exceeds that rating, the breaker automatically opens to prevent overheating. Constantly hitting that limit means either that circuit is overloaded or your overall panel capacity is insufficient.
If one circuit trips with a specific appliance, that circuit is overloaded and may need a dedicated line. If multiple circuits trip randomly or with modest loads, your main panel likely can't handle your home's total demand, and an upgrade becomes necessary.
Visual and Audible Warning Signs
Beyond tripping breakers, there are other signs your home electrical panel is overloaded that are easy to miss if you don't know what to look for.These signs indicate serious problems that need professional attention immediately.
Flickering and Dimming Lights
Lights that flicker or dim when you turn on an appliance signal a voltage drop in your electrical system. When your air conditioner compressor kicks onor your electric oven heats up, these high-draw devices pull significant current. If your panel struggles to supply that power, voltage to the rest of your home dips momentarily, and your lights respond visibly.
Occasional, brief dimming when a large appliance starts is normal. Persistent flickering or dimming, especially when running multiple devices, indicates your panel can't maintain stable voltage under load.
Burning Smells and Visible Heat Damage
A burning smell near your electrical panel is an emergency indicating arcing or overheating. Arcing occurs when electrical current jumps across gaps or corroded connections, generating extreme heat. You may notice burnt plastic odor or see scorch marks and melting on the panel door or breakers.
Any visible heat damage means your panel has been operating dangerously hot and creates serious fire risk. Stop using high-draw appliances and call a licensed electrician immediately.
Buzzing or Crackling Sounds
A buzzing, crackling, or sizzling sound from your electrical panel is an emergency signal indicating arcing or loose connections creating resistance and heat. Any audible noise from the breaker box means something is wrong.

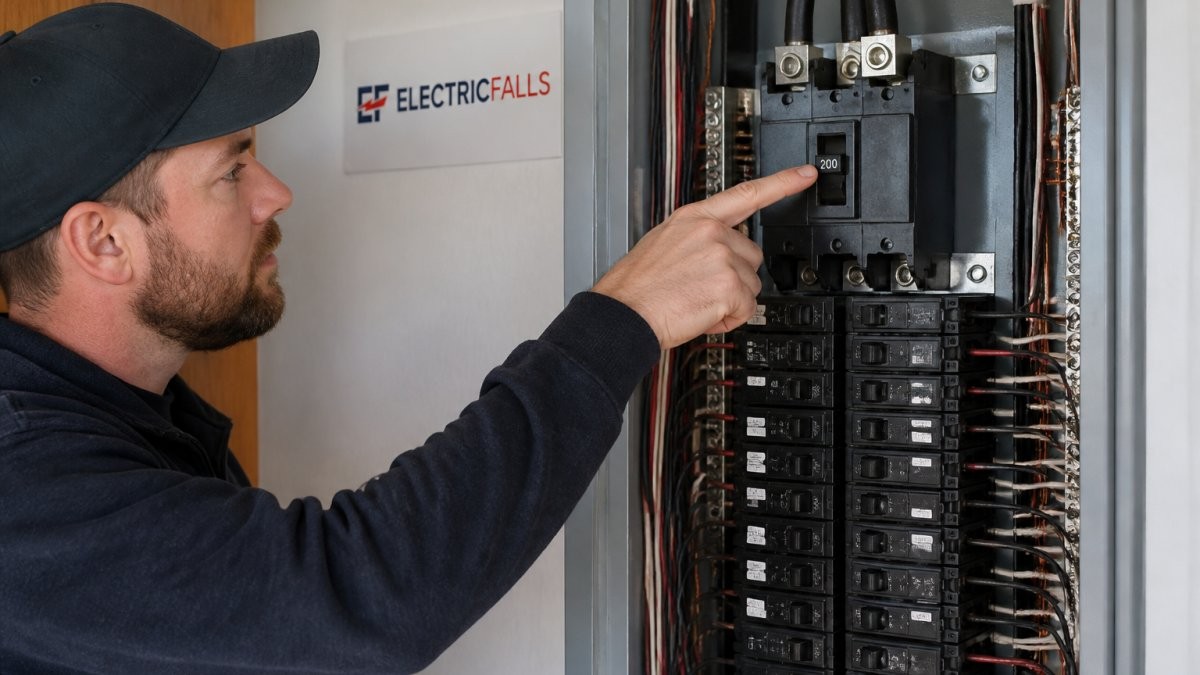

How to Check Your Electrical Panel Capacity
Start by locating your main breaker or service panel, typically in a basement, garage, or utility room.
The main breaker shows your home's total service amperage; common ratings are 100, 150, or 200 amps. The amperage is printed directly on the main breaker.
Examine the individual breakers in your panel. Each is labeled with its amperage (15, 20, 30, 40, or 50 amps). Standard outlets use 15 or 20-amp breakers; larger appliances use 30, 40, or 50-amp breakers.
The Basic Load Calculation: A Homeowner's Rule of Thumb
Adding up all breaker amperage gives a theoretical total, but not every circuit runs at full capacity simultaneously. You can perform a simple calculation to estimate your actual peak load and assess risk.
Start by listing your high-draw appliances and their typical amperage:
Identify which appliances could realistically run simultaneously. For example: air conditioner (18 amps) + electric water heater (25 amps) + clothes dryer (25 amps) = 68 amps. Add lighting and refrigerator (15 amps) = 83 amps.On a 100-amp panel, you have only 17 amps of head room. If your calculation shows 80-90% of panel capacity during normal operation, you're in the danger zone.
What This Means for Your Home
If you're consistently using 80% or more of your panel's rated amperage, it's effectively overloaded. Sustained operation above 80% causes accelerated wear on breakers, connections, and wiring insulation.
If you're planning to add new loads, an electric vehicle charger (40-50 amps), a heat pump (30-40 amps), or a whole-home backup generator, recalculate with those additions included.
This calculation is a starting point, not a substitute for a professional electrical inspection. A licensed electrician can measure your actual demand and account for utility voltage, wire sizing, and code requirements.
Understanding Electrical Load and High-Draw Appliances
Your home's electrical load is the total current your appliances demand at any moment. Light bulbs use 0.5 amps; TVs use 2-3 amps. Power-hungry devices include air conditioners (15-20 amps), electric ranges (40-50 amps), and heatpumps (30+ amps).
High-draw appliances are the biggest contributors to panel overload. Common culprits include:
When multiple high-draw devices run simultaneously, your panel's total load spikes. Running an air conditioner, electric water heater, and clothes dryer simultaneously pulls 60-80 amps, potentially exceeding a 100-amp panel'scapacity. Modern additions like EV chargers and smart home systems create loads older homes weren't designed to handle.
When to Upgrade Your Electrical Panel
A panel upgrade becomes necessary when your home's electrical demandconsistently approaches or exceeds your service capacity. Before committing to full replacement, understand the trade-offs between upgrading your main panel and installing a sub-panel, a secondary distribution point for specific high-draw loads.
Situations That Call for a Full Panel Upgrade
Your panel is at or near capacity. If breaker slots are full or you're adding dedicated circuits for new appliances, an upgrade is warranted.
You experience frequent breaker tripping despite normal loads. This indicates your panel is undersized.
Your home is older with original wiring. Homes built before 1980 often have inadequate 100-amp panels. Upgrading is wise if planning renovations or major appliance replacements.
You see signs of heat damage or arcing in or around your panel. These indicate dangerous stress and need replacement.
You're adding multiple significant electrical loads. Installing both an EV charger and heat pump or adding a generator plus new circuits, requires a full panel upgrade.
The Upgrade vs. Sub-Panel Decision
Modern homeowners often face a specific decision: should I replace myentire 100-amp panel with a larger 200-amp service, or install a sub-panel to handle new loads while keeping my existing panel?
Full panel upgrade involves installing a larger service panel (typically 150, 200, or 300 amps) to handle increased demand safely. This requires a licensed electrician and often utility coordination. A full upgrade is right if your overall home demand has grown beyond your panel's capacity, you plan multiple new circuits or appliances, your panel shows age or heat damage, or you want a unified distribution system.
Sub-panel installation adds a secondary panel fed by a large breaker in your main panel to handle specific high-draw loads, typically an EV charger, heat pump, or backup generator, without full main panel replacement.
The Modern Context: EV Chargers, Heat Pumps, and Tankless Water Heaters
Modern appliances like Level 2 EV chargers (40-50 amps), heat pumps (30-40 amps), tankless electric water heaters (30-50 amps), and induction cooktops (40-50 amps) demand significant power. If your home has a 100-amp panel and you're adding an EV charger, you're likely already at 70-80%capacity. Adding a 50-amp charger would push you to 120-130%, impossible and unsafe. A sub-panel fed from a 50-amp breaker is often the practical solution. If you're also planning a heat pump replacement and your main panel is crowded, a full upgrade to 200 amps may be more cost-effective.
What to Expect from a Professional Assessment
A licensed electrician will read your main panel amperage, estimate your current load, identify heat damage or code violations, understand your future plans, and recommend either a full upgrade or sub-panel installation. A professional assessment ensures your home's electrical system is safe andadequate for years to come.
Safety Risks of an Overloaded Panel
An overloaded electrical panel isn't just inconvenient, it's genuinely dangerous. The risks extend beyond simple power loss.
Electrical fires. Overheated wiring and arcing connections can ignite nearby materials. Many home fires originate in electrical panels that have been operating beyond their safe capacity.
Equipment damage. Voltage fluctuations from overloaded panel damage sensitive electronics. Your refrigerator, computer, television, and other devices are vulnerable to surges and drops.
Electrocution risk. Loose connections and arcing inside a panel create shock hazards. If you touch a panel with loose internal connections, you risk serious injury ordeath.
Code violations. An overloaded panel violates the National Electrical Code. If you're selling your home or applying for permits on renovations, an undersized panelcan delay or prevent approval.
Insurance complications. Some insurance policies exclude coverage for fires caused by electrical system failures, particularly in homes with known panel problems.
These aren't theoretical risks; they're real consequences of ignoring warning signs.
An overloaded electrical panel is a serious issue that demand professional attention. If you've noticed any of the warning signs, frequent breaker tripping, flickering lights, burning smells, or buzzing sounds, your home needs an electrical inspection. Give us a call today or request service to schedule one of our professional electricians to come take a look to see if your panel is overloaded!
